Our 40x40mm aluminium batten sliding gates are custom cut to suit your required width and height, then supplied flat-packed as a DIY kit ready for you to assemble at home.

This system gives you the modern architectural batten look without the cost of having a fully welded custom gate fabricated. We cut the aluminium to size, prepare the rails and supply the components so you Tek screw it together yourself and save.

HOW TO GET A FAST PRICE

SMS John on 0414 237 573 with:

• Finished height and width you want the sliding gate made
• Your opening width
• Colour required – Satin Black, Dark Grey or Gloss White
• Batten gap required – 40mm, 80mm or 120mm
• Your suburb or postcode if delivery is required

PRICE GUIDE

Pricing depends on the finished gate size, colour and gap between the battens.

This is supplied custom cut to size and flat-packed as a DIY kit.

OUR DIY BATTEN SYSTEM

We have developed a multi-purpose top and bottom batten rail with pre-punched holes every 40mm. This makes it easy to create a straight, professional vertical batten layout without having to individually measure every batten.

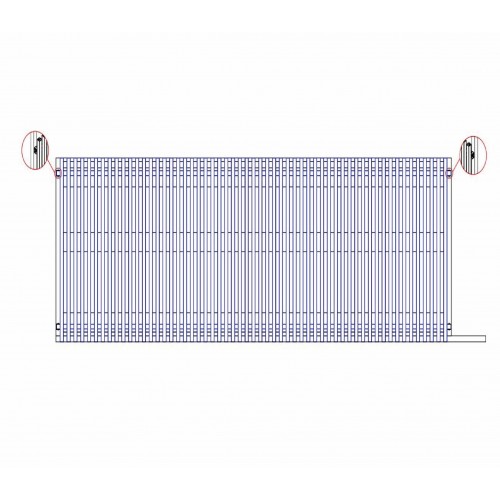

The horizontal batten rails are fixed over the main sliding gate frame, allowing the vertical battens to create a full architectural facade across the face of the gate.

CHOOSE YOUR BATTEN GAP

The closer the battens are together, the more privacy you achieve. Closer spacing also uses more aluminium, so the price increases accordingly.

If you want a different gap, you can simply ignore the pre-punched holes and freestyle your own batten spacing during assembly.

GATE DEPTH & CONSTRUCTION

The vertical battens are 40x40mm aluminium and are mounted over the horizontal batten rail, which then sits over the main gate frame.

The finished gate depth is approximately 130mm:

• 40mm vertical batten
• 40mm batten rail
• Approximately 50mm main gate frame

Our battens contain 2 internal reinforcing ribs, giving the screws a strong internal fixing point. The extrusion and screw connection system has been designed to create a very strong finished gate without requiring the battens to be welded individually.

COLOUR OPTIONS

The vertical battens and sliding gate frame are available in:

• Satin Black
• Dark Grey – similar to Monument
• Gloss White

We also stock 76x76mm and 100x100mm aluminium posts. If you are also buying posts, make sure your final sliding gate width allows for the post positions and required overlap.

DIY SYSTEM FEATURES

• Heavy-duty 40x40mm aluminium battens
• 2 internal reinforcing ribs for strength and screw connection
• Powder-coated aluminium
• No rusting and no painting required
• Available in White, Black and Dark Grey
• Concealed batten fixings from behind
• Pre-punched horizontal DIY rails
• Top and bottom batten caps supplied
• Caps available in black, white or clear depending on colour
• Plugs supplied for unused holes in the horizontal rails
• Suitable for most handy DIY customers and tradespeople

As a general guide, the top and bottom batten rails are usually positioned approximately 10% in from the top and bottom of the vertical battens.

MATCHING FENCES & SWING GATES

We can also make matching fence panels, pedestrian gates, swing gates and double swing gates using the same 40x40mm vertical batten system.

WE CUT IT TO SIZE – YOU TEK IT TOGETHER AT HOME

IMPORTANT INFORMATION BEFORE ORDERING

• $250 deposit per custom gate or panel is required when placing your order
• We normally cut custom orders on Tuesdays and Thursdays
• Protective film may be left on the aluminium for you to remove after assembly
• Please allow approximately 3-6mm manufacturing tolerance in final sizes
• 40mm, 80mm and 120mm refer to the clear gap between the 40x40mm battens

DIRECT FROM THE WAREHOUSE

BULKY GOODS DELIVERY – AUSTRALIA WIDE

For 1 gate or 1 fence panel only, wrapping and Australia-wide shipping is generally $120.

For larger orders, our regular flat-rate delivery prices include:

• Northside Brisbane – $140
• Southside Brisbane – $200
• Gold Coast – $250
• Ipswich – $250
• Sunshine Coast – $250
• Sydney – $350
• Rockhampton – $350
• Melbourne – $450
• Townsville – $450

For all other areas, send us your suburb and postcode and we can quote delivery directly to your home. Australia-wide delivery is available.
